SIPS Ground Screws – The Rapid, Sustainable Foundation Solution
Product Name: SIPS Ground Screws / Earth Anchors / Screw Piles
Application: Foundations for SIPS (Structural Insulated Panel) Buildings, Cabins, and Decks
Keywords: Ground Screws, Screw Piles, SIPS Foundation, No Concrete, Eco-Friendly Construction, Off-Grid Foundation, Rapid Installation
Product Overview

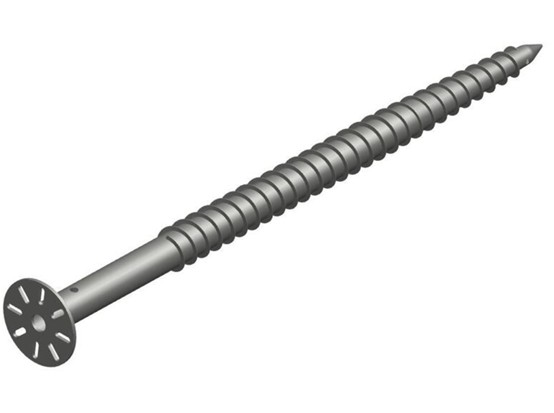

SIPS Ground Screws provide the ideal foundation for the modern, efficient construction methods used with Structural Insulated Panels (SIPS). By replacing traditional concrete footings with heavy-duty galvanized steel screws, this system offers a fast, clean, and incredibly strong base for your building.
Designed for speed and stability, ground screws are driven directly into the earth, creating an immediate load-bearing platform. This method is perfectly suited for SIPS construction, which demands a straight, level, and dry foundation to maintain its thermal envelope integrity. Whether you are building a garden office, a modular home, or a commercial annex, ground screws eliminate the curing time and mess associated with concrete.
Key Advantages
- Zero Curing Time: Unlike concrete, which takes weeks to cure, ground screws are ready for immediate loading. You can start framing your SIPS structure the same day the screws are installed.
- All-Weather Installation: Ground screws can be installed in frozen ground, wet mud, or dry heat. Rain or shine, your project schedule remains on track.
- Eco-Friendly & Recyclable: There is no concrete waste or soil displacement. At the end of the building’s life, the screws can be unscrewed and recycled, leaving the site virtually undisturbed.
- Adjustability: The screw heads can be precisely leveled, ensuring a perfectly flat base for your SIPS panels, which is critical for maintaining airtightness and structural alignment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Hot-Dip Galvanized Steel (S355 / Q235) |
| Coating | Zinc (60-80µm) for Corrosion Resistance |
| Design Life | 25 – 50+ Years (depending on soil acidity) |
| Installation Method | Hydraulic Drive Heads or Hand Tools |
| Load Capacity | High Compression & Tension (Engineered per site) |
| Adjustability | ± 50mm Vertical Adjustment |
Why Ground Screws are Perfect for SIPS
- Preserving the Thermal Envelope: SIPS buildings are prized for their insulation. Pouring concrete introduces moisture, which can compromise the OSB skin of SIPS panels if not perfectly dried. Ground screws keep the structure dry from day one.
- Speed of Erection: SIPS panels go up incredibly fast. Ground screws match this pace, allowing for a “dry foundation” that aligns with the rapid assembly nature of prefabricated panels.
- Service Integration: The void beneath a SIPS floor built on ground screws allows for easy routing of plumbing, electrical, and ventilation ducts without the need to chase into concrete.
Applications
- SIPS Garden Rooms & Offices: The most popular choice for backyard studios where minimizing ground disturbance and mess is a priority.
- Modular & Prefab Homes: Ideal for supporting the steel or timber chassis of factory-built homes.
- Glamping Pods & Cabins: Perfect for remote or sensitive landscapes (like forests or near water) where concrete pouring is logistically difficult or environmentally prohibited.
- Solar Panel Arrays & Fencing: Providing secure anchoring for site infrastructure.
- Decking & Patios: Creating a stable, rot-resistant base for outdoor living spaces attached to SIPS extensions.
Installation Process
- Site Survey: A quick assessment of soil conditions (clay, sand, rock) determines the screw size and depth.
- Positioning: The screw locations are marked according to the SIPS floor plan.
- Driving: A hydraulic drive head attached to a mini-excavator (or a manual tool for smaller projects) rotates the screw into the ground to the required depth and torque.
- Leveling: The heads are cut or adjusted to the exact finished floor level.

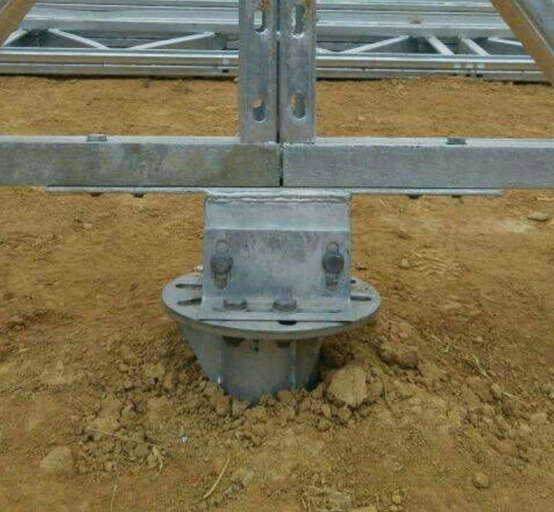

- Bracket Attachment: Steel U-brackets or plates are welded or bolted to the screw tops, ready to receive the SIPS sole plate.
Packaging & Storage

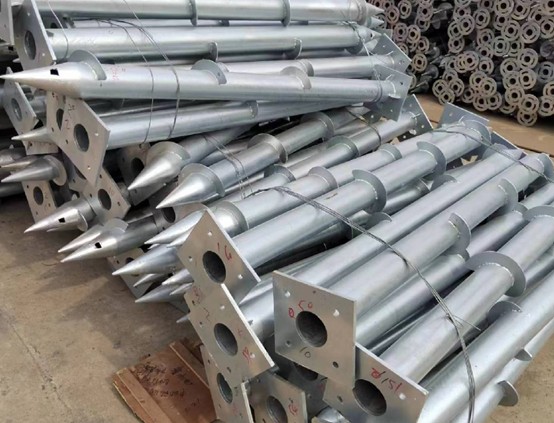

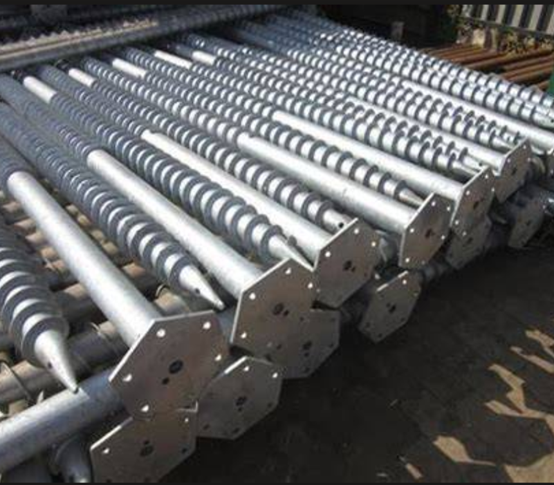

- Packaging: Bundled in steel straps or crates, often with protective caps on the threads.
- Storage: Store on flat ground. The galvanized coating is durable, but keeping them dry ensures maximum longevity before installation.
Why Choose Us?
- Engineering Support: We provide load calculations to ensure the screw pattern matches the specific weight of your SIPS design.
- Complete Systems: We supply not just the screws, but the necessary brackets, sole plates, and insulation collars to complete the thermal break.
- Global Experience: Our systems are tested in diverse soil conditions, from the frozen north to humid tropics.
Get a Quote: Build faster and cleaner. Contact us today to design the perfect foundation for your SIPS project.
