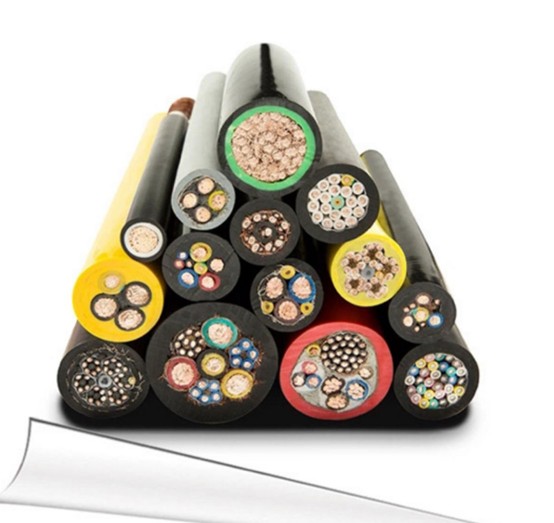

Low voltage (LV) power cables are the backbone of modern power distribution. Rated up to 0.6/1kV, they are widely used in residential buildings, commercial facilities, industrial plants, utility networks and renewable energy projects. Available with copper or aluminum conductors, LV power cables provide reliable electrical transmission for fixed installations, underground networks, cable trays and industrial equipment.
EnerStorAI supplies low voltage power cables for solar and energy storage projects as well as general distribution, with custom cross-sections, cores and armor options manufactured to IEC, BS and GB standards.
Technical Specifications
| Item | Specification |
|---|---|
| Rated Voltage | 0.6/1kV |
| Conductor Material | Copper or Aluminum |
| Insulation | XLPE or PVC |
| Outer Sheath | PVC, PE, LSZH |
| Number of Cores | 1 Core to 5 Cores |
| Conductor Size | 1.5mm² – 400mm²+ |
| Operating Temperature | Up to 90°C (XLPE) |
| Installation Method | Indoor, Outdoor, Underground |
| Standards | IEC 60502-1, BS, GB |
Available Cable Types
YJV Cable
XLPE insulated and PVC sheathed power cable designed for low-voltage distribution systems. Features: operating temperature up to 90°C, higher current carrying capacity, long service life, suitable for fixed installation. Applications: commercial buildings, industrial facilities, power distribution networks and solar power systems.
YJV22 Armored Cable
Steel tape armored version of YJV cable for installations requiring mechanical protection. Features: steel tape armor, moisture resistance, mechanical impact protection, suitable for direct burial. Applications: underground cable networks, industrial plants, utility infrastructure and outdoor installations.
VV Cable
PVC insulated and PVC sheathed power cable for general-purpose electrical distribution. Features: cost-effective solution, easy installation, suitable for indoor environments. Applications: building wiring, cable trenches and indoor power distribution.
Low Voltage Cables for Battery Energy Storage Systems
Energy storage systems place demanding requirements on cabling: high DC currents, tight bends inside cabinets and strict fire safety. In a typical BESS, low voltage cables are used for:
- Battery interconnect cables – flexible, high-current links between cells, modules and racks.
- DC bus cables – connecting battery racks to the PCS/inverter input.
- AC output cables – from the inverter to distribution panels and transformers.
- Control and communication cables – BMS and monitoring signal wiring.
For high-current DC circuits, flexible fine-stranded copper conductors reduce voltage drop and simplify installation inside cabinets. Where cables pass between modules, flame-retardant or LSZH sheaths improve fire safety.
How to Select the Right LV Cable
Conductor Material
- Copper conductors – higher conductivity, better mechanical strength, ideal for critical applications and high-current circuits.
- Aluminum conductors – lower cost and reduced weight, suitable for large cross-sectional installations and long distribution runs.
Voltage Drop
For long runs, voltage drop matters. Use a larger cross-section when the cable run is long or the current is high: as a practical rule, a 100 m run at 50 A needs a substantially larger conductor than a 10 m run to stay within the recommended voltage drop.
Ampacity and Cross-Section Selection
Ampacity – the maximum current a cable can carry continuously – depends on conductor material, insulation type, installation method (in free air, on a tray or buried) and ambient temperature. The table below gives indicative current ratings for copper, PVC-insulated conductors in free air; always verify against the applicable standard (such as IEC 60364) for your installation conditions.
| Conductor Size | Indicative Ampacity (Cu, PVC, free air) |
|---|---|
| 1.5 mm² | ~16 A |
| 2.5 mm² | ~22 A |
| 4 mm² | ~30 A |
| 6 mm² | ~38 A |
| 10 mm² | ~52 A |
| 16 mm² | ~70 A |
| 25 mm² | ~90 A |
Where cables are grouped, derating factors apply, and long runs may require a larger conductor to limit voltage drop. EnerStorAI’s engineers can calculate the correct cross-section for your BESS or solar project based on current, distance and installation method.
Why Cable Quality Matters for Energy Storage
Battery circuits carry very high DC currents, sometimes exceeding 200 A per rack. Poor conductor quality or undersized cable creates resistance, which converts into heat and energy loss – and in the worst case, connection failure inside a battery cabinet. Flame-retardant insulation and proper termination are essential for fire safety in energy storage installations. Quality-controlled copper, consistent insulation thickness and correct connector crimping are non-negotiable for BESS cabling, which is why EnerStorAI manufactures and tests every cable lot before shipment.
Installation Environment
- Indoor installation – YJV, VV or LSZH cables.
- Outdoor and underground – YJV22 armored cables and water-resistant structures.
- Public buildings – Low Smoke Zero Halogen (LSZH) and fire-resistant options.
Testing and Quality Assurance
Every production lot is tested for conductor resistance, insulation resistance, high-voltage withstand and sheath integrity before shipment. Test reports and material certificates are provided with each order, so project engineers can verify compliance with the specified standards before installation.
Applications
Building construction: residential buildings, offices, hotels, shopping centers and hospitals. Industrial facilities: motors, pumps, production equipment, distribution panels and manufacturing plants. Renewable energy: solar power systems, battery energy storage systems, inverter connections and distribution transformers. Utility infrastructure: underground distribution networks, urban power grids, transportation systems and public infrastructure projects.
Packaging and Custom Manufacturing

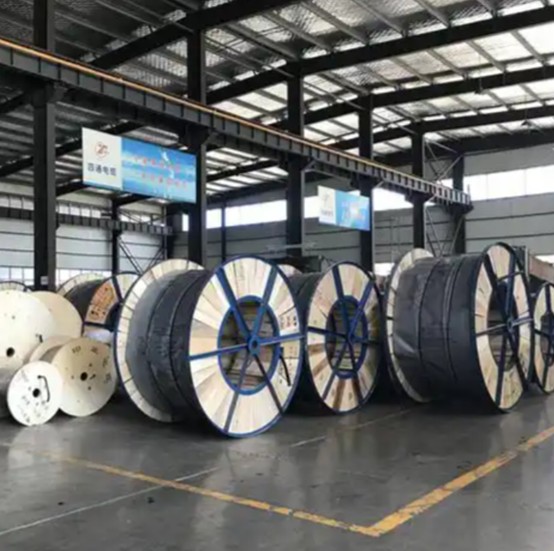

Wooden drums for large cable sizes and coils for small cross-sections, with export packaging available on request. We supply customized low-voltage cables with copper or aluminum conductors, 1-5 core configurations, cross-sections from 1.5mm² to 400mm²+, armored and non-armored constructions, and LSZH or fire-resistant options.
Frequently Asked Questions
What is the difference between YJV and YJV22 cable?
YJV is an XLPE-insulated, PVC-sheathed cable for general distribution. YJV22 adds a steel tape armor layer for mechanical protection, moisture resistance and direct burial applications.
Can you supply cables for battery energy storage systems?
Yes. We supply flexible battery interconnect cables, DC bus cables, AC output cables and control cables for BESS, with flame-retardant and LSZH options available.
Do you provide custom cable lengths and cross-sections?
Yes, custom lengths, cross-sections from 1.5mm² to 400mm²+, core counts and armor options are available for project orders.
What standards do your cables meet?
Our low voltage cables are manufactured to IEC 60502-1, BS and GB standards, with testing documentation available on request.
How do I get a cable quotation?
Send your voltage, current, run length, installation environment and quantity to s18301170098@gmail.com or WhatsApp +86 18301170098 for a datasheet and quotation.
