TL-B08 Micro Brushless DC Pump: High-Efficiency Cooling for Liquid-Cooled Charging Piles
The TL-B08 series is made up of small and light centrifugal pumps based on micro brushless DC magnetic drive. The reliability of the TL-B08 series pump is guaranteed by its sealed structure, wide operating voltages, good stability, and long operating life. Due to the materials used in manufacturing, the TL-B08 series pumps are suitable for high temperatures and food processing applications.
1. Technical Specifications
The TL-B08 is highly configurable, offering multiple options for flow, head, and voltage to match your system’s exact requirements:
Max Flow Rate Options: 7 L/min | 9 L/min | 12 L/min
Max Head Options: 3m | 5m | 8m
Rated Voltage: 12V / 24V DC
Motor Type: Brushless DC (BLDC) Motor
Impeller Type: Closed Impeller
Food Grade Compliance: Yes (Constructed with FDA-compliant materials)
Core Model Parameter Breakdown

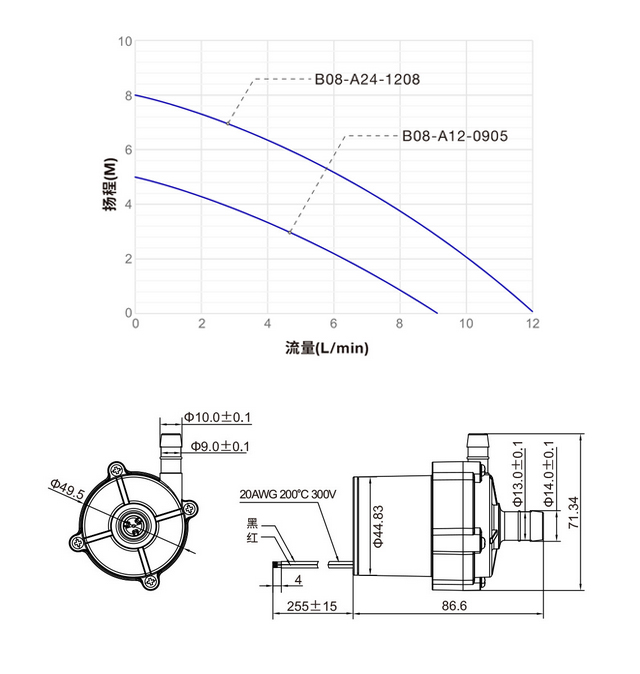

| Model Number | Rated Voltage (VDC) | Current (A) | Max Flow (L/min) | Max Head (m) | Power (W) |
| TL-B08-A12-0905 | 12V | 1.38 | 9 | 5 | 16.6 |
| TL-B08-A24-1208 | 24V | 1.38 | 12 | 8 | 31.2 |
2. Key Features and Engineering Advantages
This series is developed to address common problems in fluid distribution and thermal management systems:
Leak Proof Magnetic Drive: The static seal construction ensures that there is no chance of pump casing rupture, and hence, fluid loss during the pump lifetime.
Electric Fail Safe Design: Electric safety features prevent electronics breakdown and electric burnouts under harsh operating conditions.
20,000 Hours Operational Lifetime: Use of brushless motors and magnetic couplings significantly cuts down on wear and tear, resulting in an operational lifetime of 20,000 hours without maintenance needs.
Compact and Light Weight Build: It has a compact size enabling easy installation into small spaces while keeping the weight down.
Smart Speed Control: Allows for intelligent speed control to adjust flow rate and energy consumption in the entire system.
3. Versatile Application Ranges
Designed for liquid-cooled supercharging piles, the TL-B08 works well in a wide variety of commercial, medical, and industrial applications:
EV & Automotive Cooling: Liquid-cooled supercharging stations, battery thermal management systems (BTMS), and automotive air conditioning.
Industrial & Laboratory Cooling: Laser chillers, 3D laser printer cooling, and genetic sequencers.
Food & Beverage Automation: Water dispensers and commercial vending machines (leveraging its food-grade material certification).
HVAC Systems: General cooling circulation loops and air conditioning condensate drainage.
The pump is built to handle pure water, seawater, and other fluids that work safely with the pump’s wetted materials.
4. Operational Guidelines & Precautions
To ensure long-term reliability and prevent premature damage, please follow these guidelines:
Correct Polarity: Do not reverse the positive (+) and negative (-) terminals unless using a custom-ordered model with reverse polarity protection.
Handling: Do not use the pump if it has been dropped or hit by heavy mechanical shock or vibration.
Fluid Quality: Do not use fluids containing dirt, debris, or metal shavings, as these can stall the magnetic drive.
Temperature Limits: Standard models are rated for fluid temperatures up to 80°C. For higher temperature applications, please reach out to us about our specialized high-temperature variants.
Chemical Compatibility: Avoid using strong acids or alkaline fluids unless the pump is built for chemical resistance.
For customized voltage configurations, specific PWM speed control wiring diagrams, or bulk purchasing inquiries, please reach out to our engineering team.
