Ultra-Quiet Cooling Pump for Home Energy Storage TL-B10
TL-B10 pumps come with extremely small size, light weight, and ultrasonic quietness characteristics of micro brushless DC magnetic drive centrifugal pumps. They have been developed to meet the needs of highly reliable pump systems by incorporating static seal structure to ensure no leakage and operate efficiently within a wide range of voltages and temperatures, with an exceptionally long life span.
1. Technical Specifications
The TL-B10 series offers versatile configurations in flow, head, and voltage to integrate seamlessly into your system design:
Max Flow Options: 9 L/min | 12 L/min
Max Head Options: 5m | 8m
Rated Voltage: 12V / 24V DC
Motor Type: Brushless DC (BLDC) Motor
Impeller Type: Closed Impeller
Food Grade Certification: Yes (FDA, NSF, and WRAS certified)

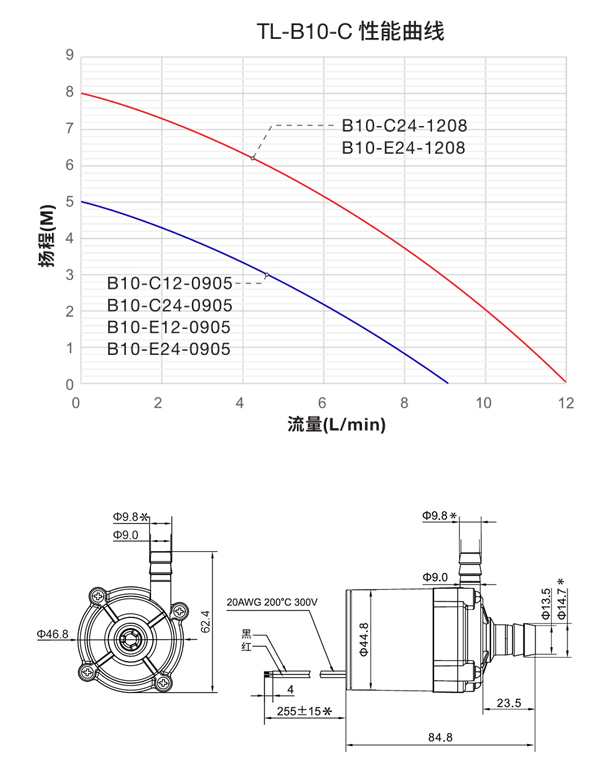

Core Model Parameter Breakdown
| Model Number | Rated Voltage (VDC) | Rated Current (A) | Max Flow (L/min) | Max Head (m) | Power (W) |
| TL-B10-C12-0905 | 12V | 1.38 | 9 | 5 | 16.6 |
| TL-B10-C24-0905 | 24V | 0.65 | 9 | 5 | 15.6 |
| TL-B10-C24-1208 | 24V | 1.38 | 12 | 8 | 31.2 |
2. Key Features and Performance Benefits
Super Quiet Functionality: Being operated in an unusually quiet mode of 35dB(A), the TL-B10 is a perfect choice for indoor household use and sensitive machinery.
Operation Life Cycle 50,000 Hours: Equipped with modern brushless motors and highly resistant magnetic coupling, the pump has an uninterrupted life cycle of 50,000 operating hours.
Seal-Free Static Sealing System: Magnetic coupling ensures a static sealing mechanism, thus avoiding any conventional shaft seals and fluid leaks during the entire lifetime of the pump.
High Resistance to Heat: Engineered to resist high temperature fluid flow up to 100°C (operating temperature range described in safety notes).
FDA & NSFS Compliant: Certified according to the most advanced standards of FDA, NSFS, and WRAS and is safe for potable water application.
Efficient Dynamic Operation: Offers adjustable operating modes based on the PWM input signal or 0-5V voltage signal.
3. Versatile Application Ranges
Designed exclusively for the purpose of addressing the space constraints of residential energy storage systems (ESS), the robust construction of the TL-B10 makes it very versatile for many different sectors:
Residential ESS: Thermal management in residential battery storage facilities and residential solar storage batteries.
HVAC and Green Building Devices: Circulation of water in heat pump water heaters, water tank circuits, AC condensate disposal, and top-end water filters or humidifiers.
Commercial and Industrial Coolant: Chillers, 3D printer coolant circuits, and automobile ACs.
F&B Automation Systems: Water dispensers, commercial coffee makers, and vending machines that need to use components with food-grade certifications.
The pump is capable of handling pure water, seawater, and low viscosity liquids compatible with its wetted materials.
4. Operational Guidelines and Precautions
Please adhere to these operational restrictions in order to extend the lifespan of your pump and avoid any damages:
Polarity Precaution: Ensure that you do not switch the positive (+) and negative (-) electrical connections unless you have a custom-made product for your particular polarity requirement.
Mechanical Stress: Do not operate the pump if subjected to impact or mechanical stress in transportation or installation.
Foreign Objects: Do not run fluids which contain solid, abrasive particles or magnetic microparticles which may jam the magnetic drive.
Temperature Regulation: Normal operations allow the fluid temperature to be raised up to 80°C continuously, but our materials can tolerate peak temperatures of 100°C. For continuous high-temperature applications, kindly contact us about high-temperature pumps.
Chemical Resistance: Do not run strongly acidic or alkaline chemicals through normal products unless a special chemical resistant design is ordered.
For more technical specifications and design considerations, feel free to contact us at our application engineering department.
