Energy Storage Cooling Pump
TA60E-B Energy Storage Cooling Pump: High-Performance Thermal Management
The TA60E-B is a high-efficiency, 24V brushless DC magnetic drive pump that is specially designed for tough thermal management systems. This pump features a small size, weighing only 640 grams, and also comes with a powerful pumping capacity with a flow rate of 35 L/min and head of 21m. This makes the pump highly reliable and offers maintenance-free operation.

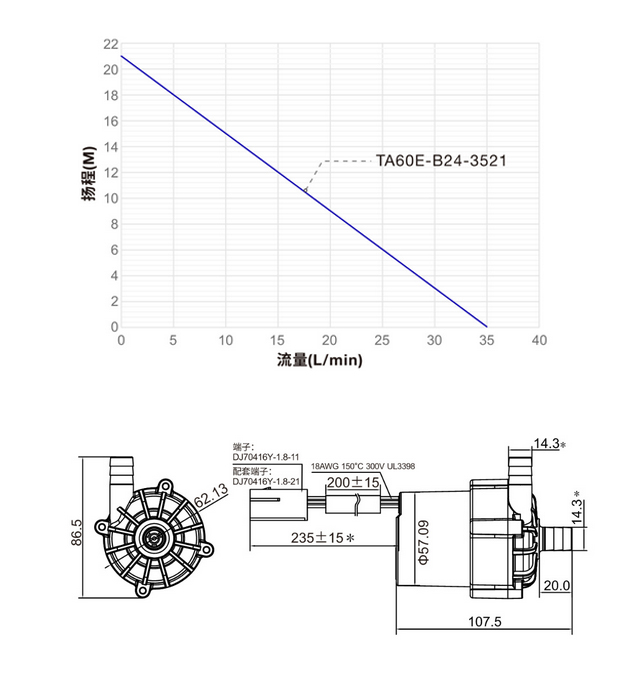

1. Technical Specifications
| Parameter | Specification | Notes |
| Model Number | TA60E-B24-3521 | Core configuration |
| Rated Voltage | 24V DC | Designed for industrial & automotive power systems |
| Max Flow Rate | 35 L/min | High-throughput circulation |
| Max Head | 21 m | Handles high-resistance, complex piping |
| Rated Current | 3.6 A | Optimized power efficiency |
| Rated Power | 86 W | High power density |
| Impeller Type | Closed Impeller | Maximizes hydraulic efficiency |
| Weight | 640 g | Ultra-lightweight and compact |
| Waterproof Rating | IP67 | Dust-tight and water-resistant |
2. Core Advantages & Engineering Features
TA60E-B has been manufactured by TOPSFLO, known for advanced mechatronic design integration and automotive-level manufacturing standards. Among the unique high-quality attributes of TA60E-B include the following:
Advanced Magnetic Drive with No Leaks
Using state-of-the-art magnetic drive coupled with a static seal construction, the TA60E-B ensures total absence of fluid leakage. This feature delivers truly maintenance-free life cycle with minimum system downtime.
Complete “Smart Protection System”
Equipped with integrated electronic systems, TA60E-B provides protection from various hazards occurring on site:
Polarity Protection: Motor safety from reverse polarity when the pump’s positive/negative terminals are plugged into wrong positions.
Dry Run/Blocked Rotor Protection: Ensures automatic shut down or adjustment if there is no liquid inside or if the impeller gets stuck.
Over-Voltage/Ultra-Voltage/Over-Current Protection: Protects the electronic systems from the power source instability.
Automotive-Level Voltage Stabilizer: Electronic parts capable of enduring peak voltage drops and other unstable power conditions typical of automotive batteries.
Extremely Durable and Suitable for Constant Heavy-Duty Cycles
Capable of continuous cycles under extreme environmental conditions (24 hours per day), the pump works within ambient temperature range between -45°C to +55°C and fluid temperature from -45°C to +85°C. Compatible with pure water and glycol-based anti-freeze solutions.
Automotive-Level Manufacturing Standards
Incorporated with automotive-level simulation of operating conditions, the TA60E-B has a negligible failure rate of less than 1:100,000.
Special Rubber-Mounted Design
Equipped with specially designed rubber mounting bracket reducing vibration levels and noise output.
3. Versatile Industry Applications
Thanks to its low power consumption, quiet operation, and robust pressure head, the TA60E-B is widely adopted across several critical sectors:
Energy Storage Systems (ESS): Liquid cooling loops inside commercial and industrial energy storage cabinets to ensure battery thermal stability.
EV Charging Infrastructure: Thermal management for liquid-cooled supercharging piles and dispensers.
Data Centers & High-Performance Computing: Server rack cooling and Coolant Distribution Units (CDUs).
Industrial & Semiconductor Cooling: Precision temperature control for semiconductor manufacturing and commercial electronics.
Hydrogen Fuel Cells: High-pressure water cooling loops for fuel cell stacks.
4. Customization Options
For compatibility with your system control circuitry, the TA60E-B is available with the following signals:
Speed Control PWM: For varying duty cycle to match flow rate with cooling requirements at any moment.
Analog Voltage Control 5V: Standard analog voltage throttling.
FG (RPM) Feedback: For RPM information output.
Please contact us directly regarding large orders or for technical drawings via our application engineering department.
